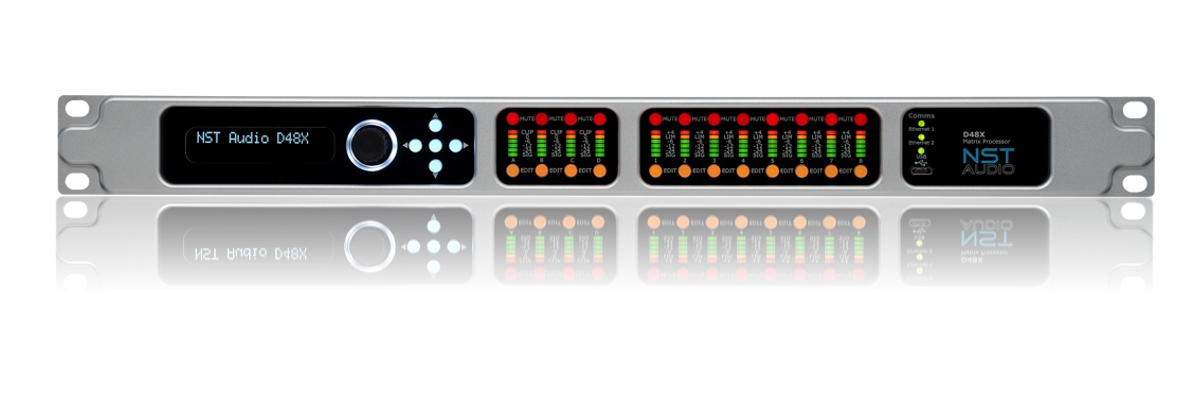

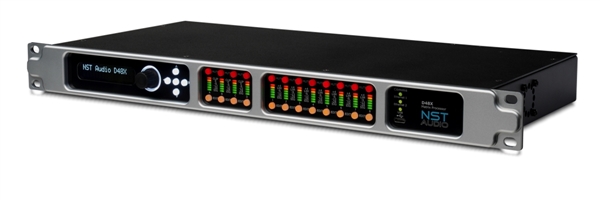

NST Audio - D48X

Processing [96kHz]

Input Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Input Delay (per channel) : 0 to 1.3s in 10.4uS steps

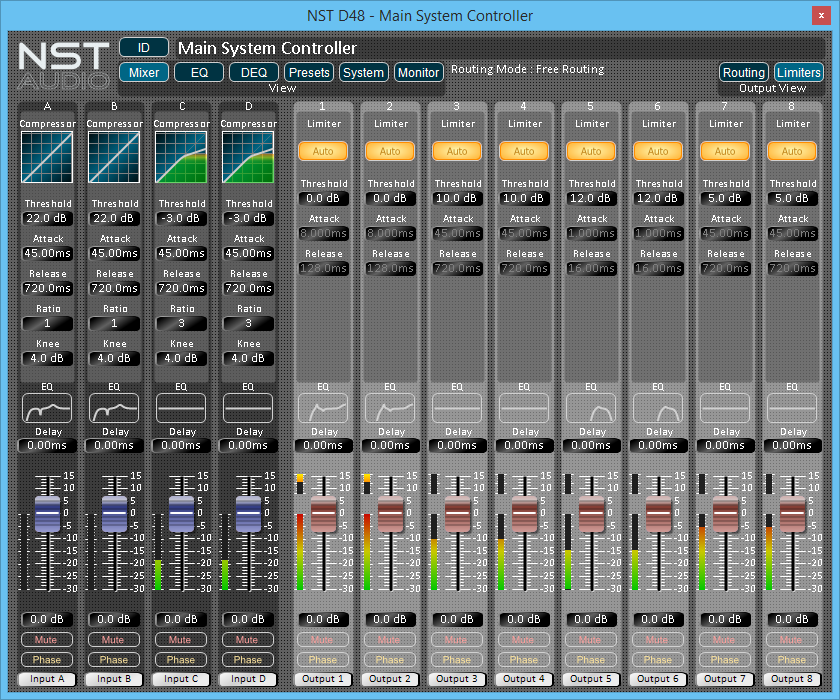

Input Compressor (per channel) : Threshold (-30 to +22 dBu), Attack, Release, Ratio, Soft-Knee
Input Parametric EQ (per channel) : 8 bands – parametric, low shelf, high shelf, notch, band-pass
Input Graphic EQ (per channel) : 28 bands

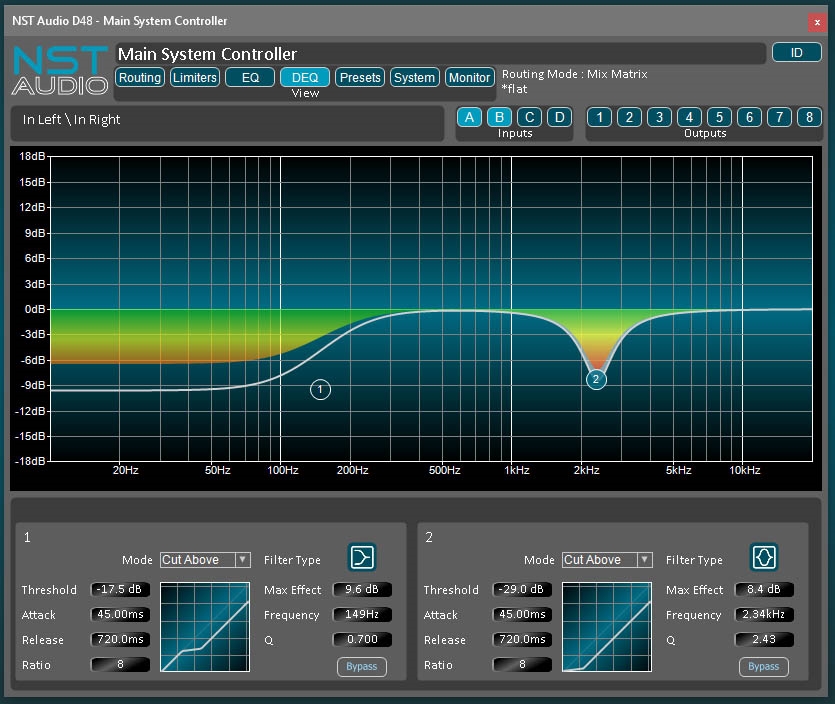

Input Dynamic EQ (per channel) : 3 bands – parametric/low shelf/high shelf, boost/cut above/below, threshold, ratio, attack, release
Input High-Pass Filter (per channel) : Up to 24dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)

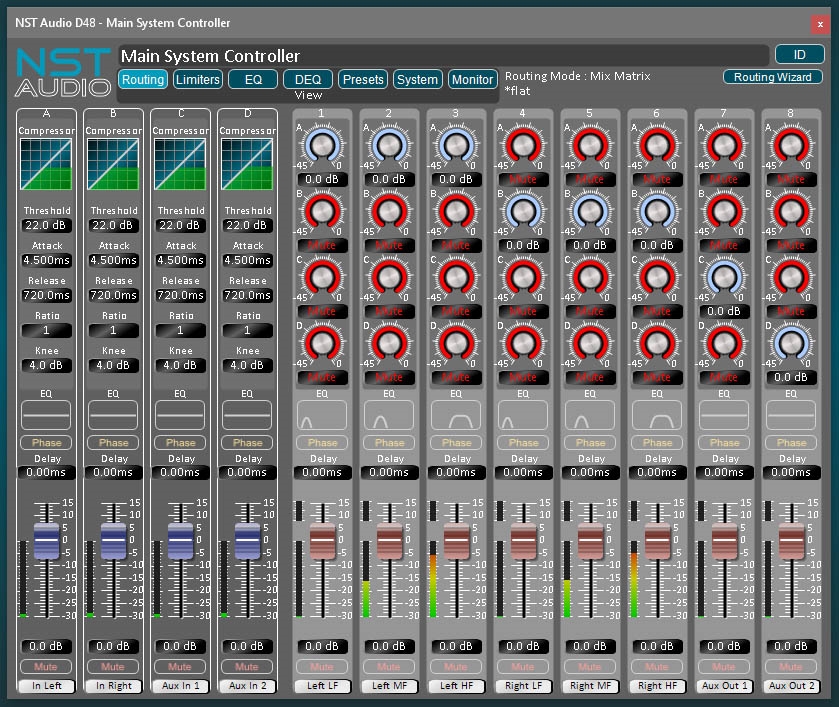

Routing Inputs to Outputs : Choice of modes (Matrix Mixer, Free Routing, 1×8 crossover, 2×4 crossover, 4×2 crossover, 2×3 crossover + 2 Aux)

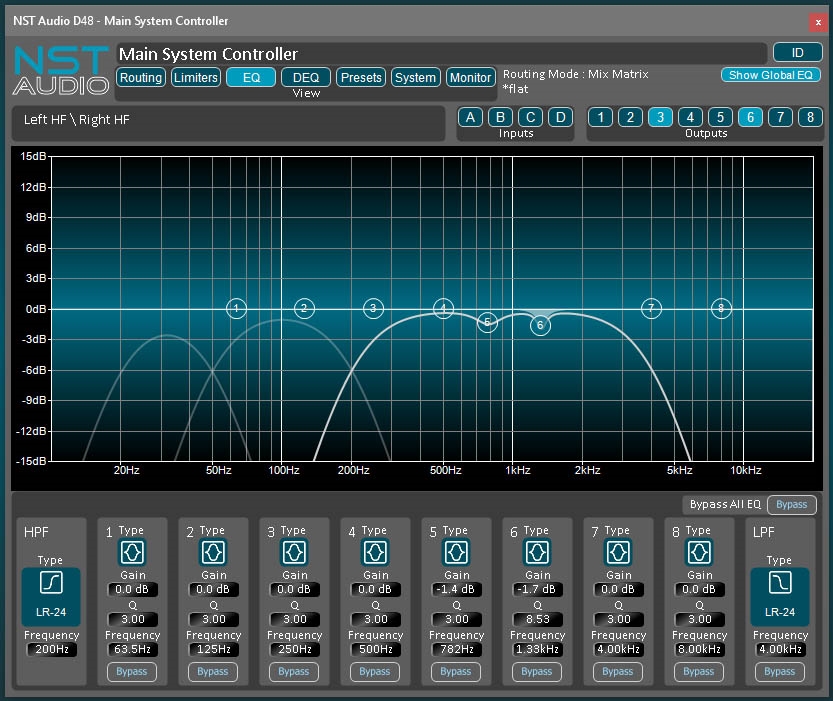

Output Parametric EQ (per channel) : 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

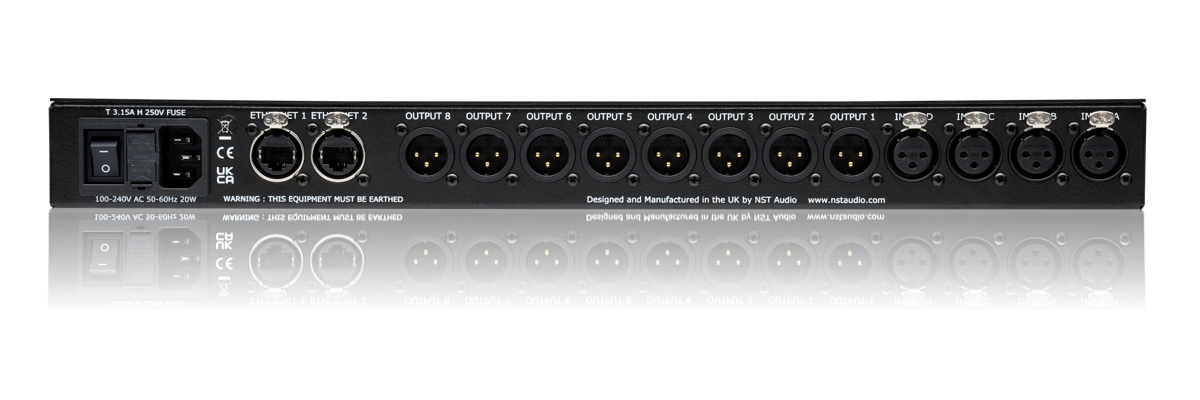

Comms

2 x 1Gbps Ethernet on rear panel (Ethercon connector)
USB Type C socket

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < 20W

Dimensions

Height : 44mm (1.75inch) 1U
Depth : 213mm (8.4 inches)
Width : 482mm (19 inches)

Weight

Net : 2.5kg
Shipping : 3.5kg

Due to continuing product improvement the above specifications are subject to change.p
